Zefira
The Motorized Retractable Shade Sail

No more parasols flying away!

Whether you have a terrace in the city, a private garden or a seaside accommodation, Zefira takes care of your outdoor space: it rolls up automatically in strong wind to give you peace of mind and reliable protection.

Forget about parasols flying away: Zefira offers you safe shade and automatic protection.

The patented system that gives you complete peace of mind

Safety first

The patented CTR technology keeps the fabric constantly under tension, even during rolling – the most critical moment for a shade sail.

Thanks to the integrated anemometer, Zefira automatically detects strong winds and rolls up safely.
Tested for over 15,000 opening and closing cycles, Zefira is the result of 20 years of Maanta expertise. Reliable, safe, and autonomous!

Open and close it every day, 3 times a day, for over 6 years
Zefira has been tested to do just that!

The designer’s

vision

"After more than 20 years of research, we wanted to create something more than just a shade sail. With Zefira, we’ve combined design, technology and practicality in a single movement. We like to think it doesn’t just protect you from the sun and wind, but that it truly transforms any space, making it more welcoming, more yours.

Every detail is designed to help you enjoy outdoor living with ease, elegance and freedom."

Designed for DIY installation

Plug & Play installation

No specialised labour required: Zefira is designed for easy DIY installation, quick and straightforward.

All components arrive pre-assembled: simply connect the roller tube, insert the sail and press start on the remote control.

A complete kit including everything you need, making installation accessible to everyone and doable in just one afternoon.

Quick
assembly

DIY
installation

Pre-assembled
components

Complete
kit

Immagine 1 Immagine 2 Immagine 3
Immagine grande

Automatic operation with 12V motor

The only self-operating sail that moves in harmony with nature

No cables, no masonry work, no complications: the 12V motor with solar panel and integrated battery offers autonomy and reliability without the need for electrical connections.

Maximum safety even during a power cut: thanks to its built-in battery and wind sensor, Zefira closes itself fully autonomously and in harmony with the environment.

A unique solution on the market that blends technology and design to help you enjoy your outdoor spaces with ease and peace of mind.

Not all motorised roll-up sails are the same

Zefira is designed to offer you the very best from every angle:

Maanta
Technology
Competitor
Technology
Off Grid: works without electricity
Requires mains connection
Reliable: works even in case of blackout
Risk of malfunction
System tested for 15,000 opening and closing cycles
Limited public information on durability testing
Maanta
Installation
Competitor
Installation
DIY-friendly: complex components pre-assembled
Requires professional installation
Fully equipped (anchors and components included)
Many accessories sold separately
Universal components: poles and wall plates
Closed or proprietary systems
Maanta
Direct purchase
Competitor
Indirect sale
Worldwide shipping in 14 days, even custom-made
Long lead times: 12–18 weeks on average
In-house production + direct customer relationship
Complex network of dealers and installers
Competitive price (€4,000–8,000)
Premium prices (€20,000 and up)

At a price up to 5 times better than standard solutions

Order your custom sail online and receive it in 14 days

With Zefira, you’re buying directly from Maanta, industry-leading manufacturers: no middlemen, no extra costs. A premium motorised sail at a price up to 5 times more affordable than other solutions on the market.

The purchasing process is simple and precise:

  • Configure your sail online quickly and easily.
  • Receive and install KIT PHASE 1, which includes the anchors and all components needed for secure installation.
  • Confirm the exact measurements in your user dashboard to ensure maximum precision in production.
  • Receive and assemble KIT PHASE 2, with your custom-made sail ready to install and all components included.

In just 14 days, you'll have your elegant, motorised roll-up sail installed — technologically advanced and perfectly tailored to your space — with ongoing support from our technical team, before and after your purchase.

Need

support?

If you need help designing your space, our team is here for you with free, personalised advice!

Patented: CTR Technology

Keeps the fabric under constant tension for maximum stability and wind resistance.

Guaranteed reliability

Tested for 15,000 opening and closing cycles. The result of 20 years of Maanta expertise.

Full-optional

Complete kit with motor, solar panel, battery and anemometer. No extras to buy.

DIY Installation

All complex components come pre-assembled for installation without special tools.

Custom-made online

Made to the centimetre and delivered in 15 days. Fits your space perfectly.

12-volt motor

Powered by a solar panel and built-in battery. Closes in under a minute.

Surprising efficiency, lasting results

Those who choose Maanta immediately notice the difference: fast lead times, all-in-one products, and support that makes every step easier. In our video interview, hear from those who have transformed their space with a motorised sail that’s reliable, stylish and highly functional.

Maanta stands for efficiency, from design to installation.

Smart technology, approved by experts

Architect Rossi recommends the Maanta motorised roll-up sail: a smart, efficient solution that makes outdoor space management easier.

A product that combines innovation and practicality, chosen and approved by professionals who work with architecture and design every day.

Discover our Instagram profile

Chosen by those who create excellence

Projects signed by renowned names like Renzo Piano choose Maanta for the reliability, design and technology of its products.

We work every day alongside architects, studios and leading firms to bring quality to the most prestigious settings.

Complete with all accessories

Wind sensor

Automatically closes the sail when wind exceeds the safety limit.

12V motor and remote control

Easy remote control for opening and closing.

Solar panel and built-in battery

Self-powered, no electrical connections needed.

Customisable anchors

Posts or wall plates included, for every type of installation.

Certified innovation,

recognised quality.

Every detail of Maanta sails is backed by patents, official certifications and international recognition. From the patented CTR technology to our presence on ArchiExpo and the trust of high-profile clients: choose a product that has already won over thousands of professionals.

Technical data sheet

ModelZefira
Available sizesCustom-made (go to configurator)
Available shapesTriangle, square, rectangle, trapezium
Maximum sail surfaceQuadrilateral: 30 m²
Triangular: 20 m²
STRUCTURE
Package contents

Anchors (wall or with Alu Simple poles 75°/90°/Collar)
Alu Simple Lid (depending on configuration)
Roller tube
Motor unit
Spring unit
Sails
Tensioning system
Roller cover
Threaded rods + chemical anchor
Battery charger
Operating rod

Optional

Custom case
Alu Simple Extension
Wi-Fi Bridge
Easy Lamp outdoor spotlight

Anchors

Available anchors (depending on configuration)Alu Simple Kit, Roller anchor plate kit, Sail anchor plate kit
MaterialAlu Simple: powder-coated aluminium
Wall plates: stainless steel
Available coloursAlu Simple: Silver, Anthracite, Dark Corten
Wall plates: stainless steel
Roller unit
Roller lengthMin: 2100 mm
Max: 8000 mm
MaterialAnodised aluminium
ColourSilver
Diameter90 mm
Motor unit
Power supply12V DC (rechargeable battery with solar panel or included charger)
Rated power140W
Torque50 Nm
Rotation speed12 rpm
Current draw11.6 A
Motor body diameter45 mm
Included components

Solar panel with integrated battery
Remote control
Anemometer
Battery charger

SOLAR PANEL DETAILS

Rated voltage12 V
Output current12 A max
Radio frequency433.92 MHz
Solar panel5W, 18V
Lithium battery5.2Ah, 12V / 10Ah, 12V
Operating temperature-10°C ~ +50°C
Dimensions620 x 67 x 45 (mm) / 670 x 67 x 45 (mm)
Spring unit
FunctionKeeps the sail under constant tension
Available types600N: For quadrilaterals > 20 m²
300N: For quadrilaterals < 20 m² and all triangular sails
CompositionGas spring
Aluminium tube 50 x 1.5 mm (length 780 mm)
High-quality 5 mm blue marine rope (2180 mm)
Bracket and sliding ring
Custom sail
Available fabricsPurishade® (Ivory, Cloud, White, Beige, Graphite)
Meshnet® (Ivory, Cloud, White, Beige, Graphite, Sage, Dark Corten)
Stitching and typeRadial with Solaria reinforcements
Perimeter webbing
Multi-anchor plates
Rope for fixing to sailsØ 5 mm (Meshnet®)
Ø 6 mm (Purishade®)
Roller coverMade from selected sail fabric, attached with Velcro
Tensioning system
FunctionKeeps the sail tensioned and ensures uniform closing
Main componentsSpring unit
Rope winder
Pulleys on sail corners
Tensioning rope
Cantilever bracket
Number of pulleys for tensioningQuadrilaterals: 6
Triangles: 3
Rope colourSilver
PACKAGING AND WARRANTY
PackagingVaries depending on configuration
Warranty2 years

Optional accessories

Custom-made cover

Custom-made, it protects the sail during winter and extends its lifespan.

Alu Simple Extension

Adds 1 m in height to improve shade projection and water drainage.

Wifi Bridge

Smart home system, remotely controllable wherever you are.

Easy Lamp outdoor spotlight

Aluminium spotlight, easy to plug in and built to last.

HOW TO INSTALL ZEFIRA

Installing Zefira is easy
No specialised labour required: you can do it yourself.

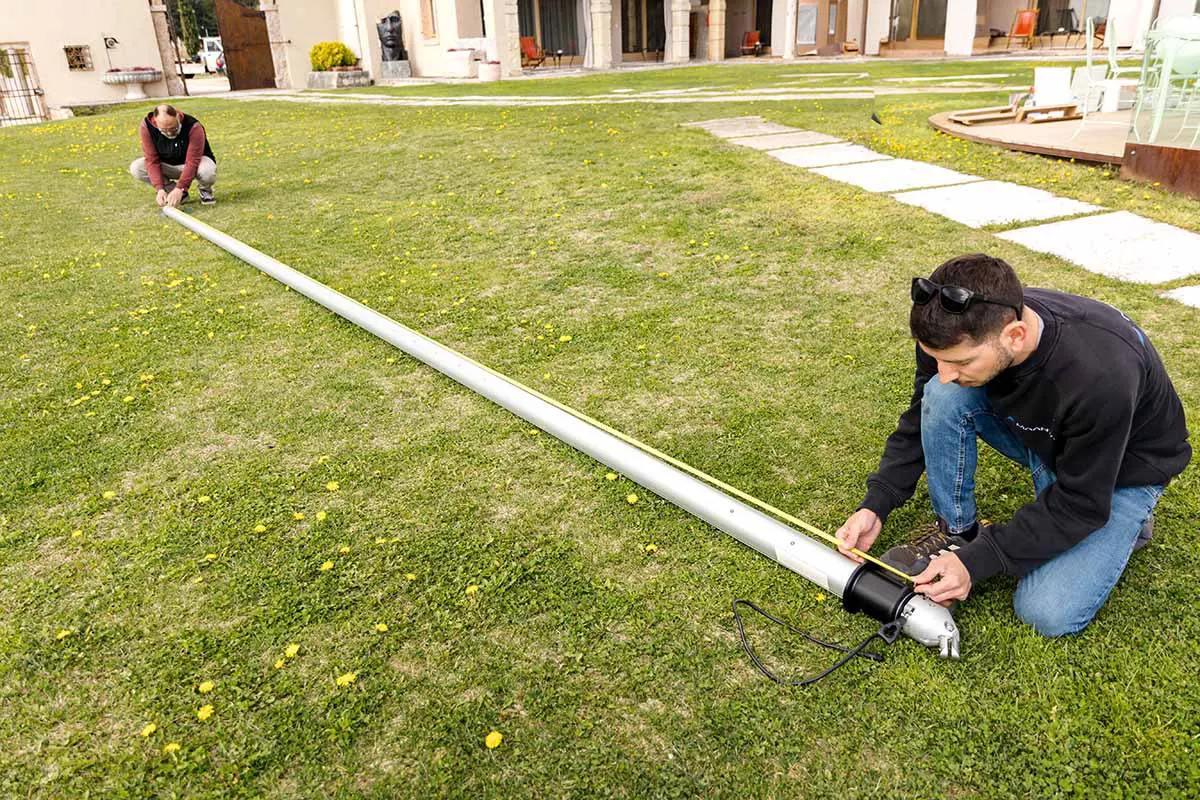

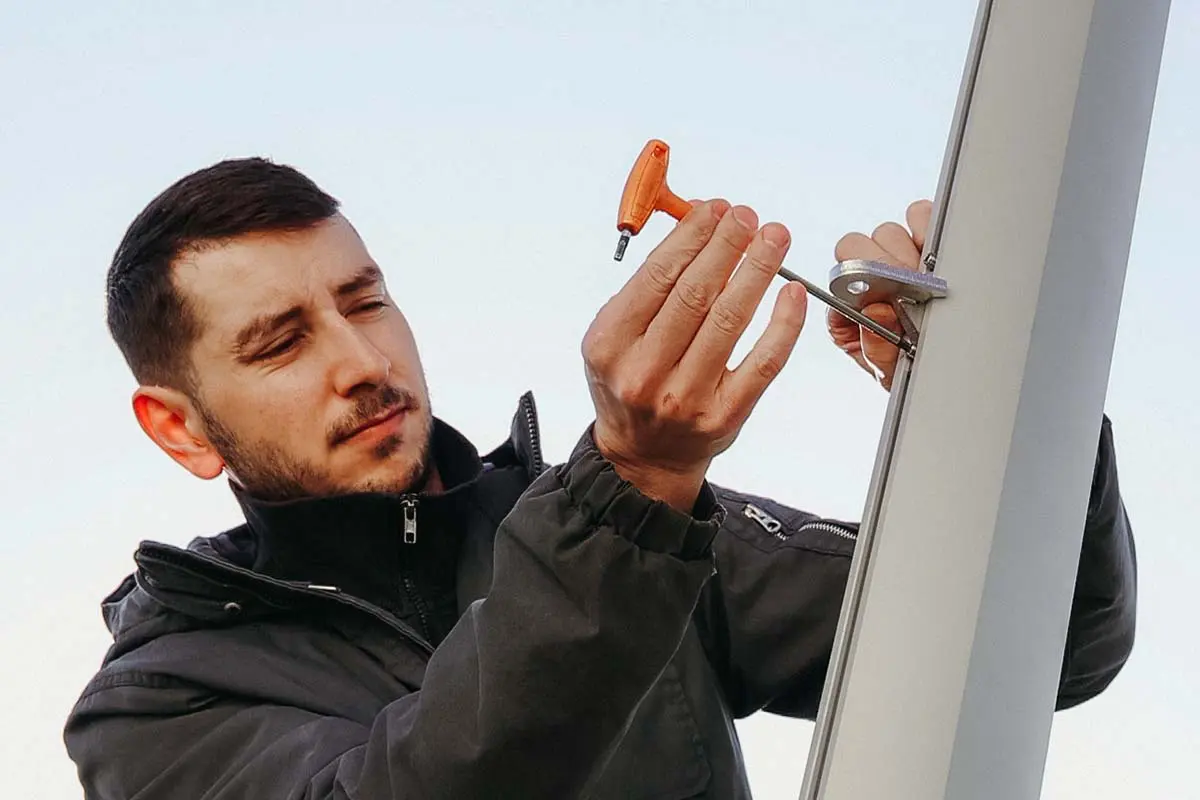

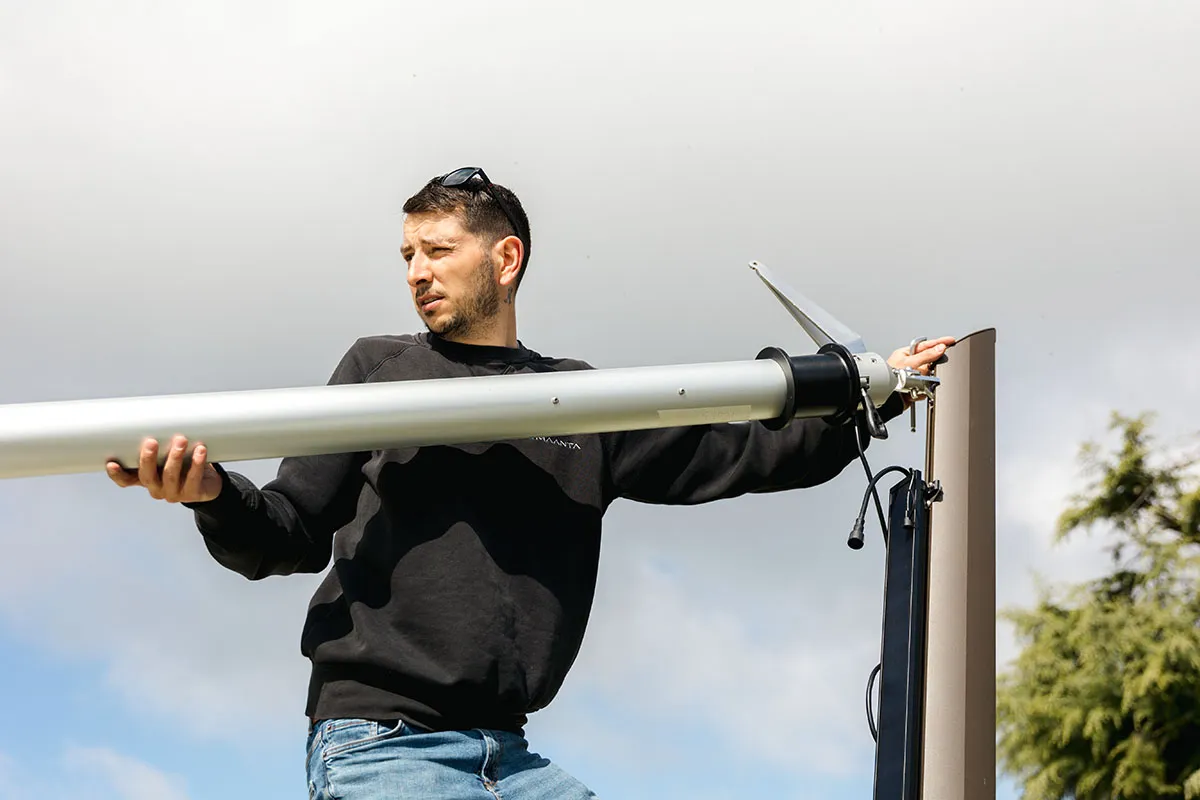

Two-phase installation
First, you install the anchors and take exact measurements. Then, you receive the roller and your custom-made sail, ready to mount.

Full support
Follow the step-by-step PDF guide. If you have any questions, our technical team is here to help.

FAQ

How can I order Zefira?

Thanks to our handy online configurator, you can create and order your custom sail in just a few simple steps. All you need to do is measure the area you want to cover, enter the dimensions into the configurator, and choose your fabric and stitching style. In seconds, the system provides you with an accurate quote. Go to configurator

Why is the purchase process divided into two phases?

To guarantee a flawless result, we’ve simplified configuration and installation by dividing them into two clear phases. Each phase will correspond to a separate order, and materials will be delivered in two shipments:

PHASE 1: You’ll configure your sail and receive the anchors and fastening materials.

PHASE 2: You’ll confirm the anchor measurements, and receive your custom sail and motorised system.

This approach allows you to install the anchors before finalising the exact sail dimensions, ensuring precise installation with zero margin for error.

Can I receive fabric samples?

Yes, fabric samples will be sent to you with your PHASE 1 order, allowing you to assess the quality and colour in person. After installing the anchors and taking the final measurements, you’ll be able to confirm your choice of fabric and colour directly in your user dashboard, at no extra cost.

How long does it take to receive and install the Zefira sail?

Your Zefira roll-up sail will be delivered and installed in around 15 days, including both phases of the process.

What’s the best time to order a custom sail?

Producing a custom-made sail involves several steps. To avoid longer-than-expected lead times, we recommend designing and ordering your sail during the low season (from September to March), if possible. Off-season prices are often more favourable, and you may also benefit from special discounts and offers.

How do I take the correct measurements for Zefira?

We recommend starting by planning your anchoring system. Design the position of the wall plates or support poles. This makes it easy to take accurate measurements between each anchoring point. The system will then automatically calculate the correct size for your sail.

Check out our measurement guide

Can I install multiple sails using the same anchoring system?

In some cases, it’s possible. We recommend contacting us to check the technical feasibility based on your space.

What if I don’t have power sockets near the installation area?

No problem! Zefira is completely self-powered thanks to its integrated solar panel with battery, which powers the motor without the need for electrical connections. This means you can install it anywhere, even in areas far from power sockets, while still ensuring reliable and sustainable operation.

How can I control the opening and closing of the sail?

You can control the sail using the included remote, through the integrated anemometer for automatic operation, or from your smartphone.

Do I need to take down the sails in winter?

No, it’s not necessary to take down the sails. However, in case of snow or very low temperatures, we recommend keeping the sail closed and protecting it with the custom-made case. This helps safeguard it from the elements and ensures greater durability over time.

Can I return a custom-made sail?

According to Article 49, letter m of the Consumer Code, the right of withdrawal does not apply to customised products. Custom-made sails are created specifically for each customer based on precise dimensions tailored to individual needs. We strongly recommend double-checking your measurements before and during the ordering process. Don’t worry! If you’re unsure, our team is always here to provide you with all the guidance and information you need.
