Motor Kit + Remote Control + Solar Panel + Anemometer Motorisation kit for roller shades

The Full-Optional Motorization Kit for Maanta drop-down awnings is the complete solution that allows you to transform your awning into a functional and independent battery-powered system, thanks to the anemometer. Experience the freedom of managing the shade and privacy of your outdoor spaces with a simple click, without wires and without the need for an electrician. Perfect for motorizing Maanta drop-down awnings and ensuring shade on your balcony or porch.

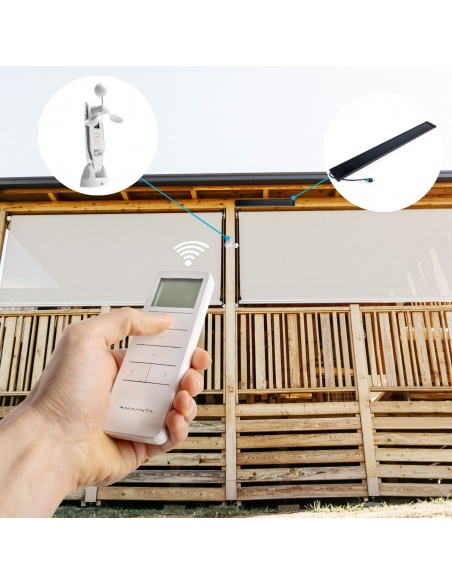

Complete kit containing: Motor + Remote Control + Solar Panel + Anemometer
Independent and autonomous motorized system

Compatible with WiFi Bridge, Reef Roll, and Easy Clear with cables

-20% £569.00

£455.20

VAT included

Order now and receive it

with UPS Carbon Neutral

YOU CAN TRUST

Free design service
Delivery 24 / 48 hours
After-Sales Service

WHY CHOOSE THE MOTORISATION KIT

100% Solar Energy

Total independence from electrical power

The kit operates solely on solar energy and features a built-in battery inside the motor. Forget about wires and electrical sockets: save costs and install it anywhere, even in places without electricity.

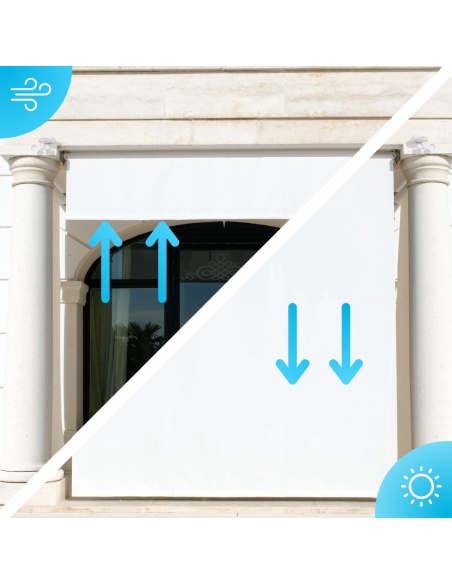

Automatic Wind Protection

Your blind goes up before the wind causes damage

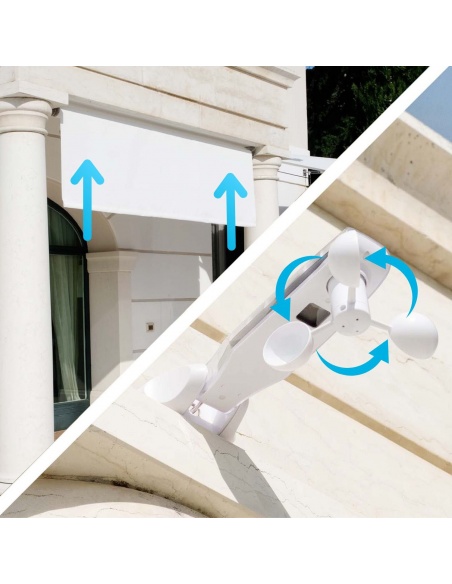

Thanks to the Maanta anemometer the blind automatically goes up when the wind is too strong. More safety, fewer worries.

Long-Term Autonomy

It operates for months without needing a recharge

Thanks to the high-capacity battery and efficient solar panel, the kit ensures extended autonomy even in low-light conditions. Reliable performance, always.

No Maintenance Required

Install, use, and forget

Once installed, you no longer have to worry about it. It operates without the need for inspections or interventions: just comfort, zero maintenance.

Smart Control from Anywhere

Home automation on your fingertips

Compatible with the WiFi Bridge: control your blind from your smartphone or via voice commands through smart assistants. Intuitive technology that simplifies life. Purchase it at this link.

Smart and wireless control with the Maanta Motorisation Kit for drop-down blinds

Manage shade with a single touch

Transform how you manage your outdoor areas with the Maanta Motorisation Kit for drop-down blinds. This solar-powered system is the only one that charges the built-in battery inside the motor, allowing you to easily control your blinds without cables or specialised installation.

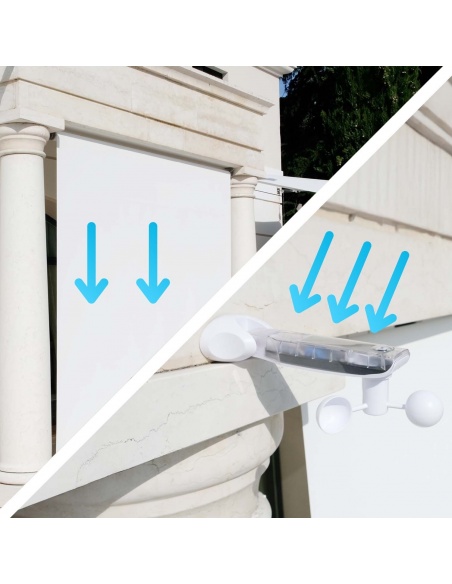

With the wind sensor integrated into the kit (click here for the product sheet of the anemometer), the blind automatically goes up in case of bad weather, preventing damage and ensuring greater safety. The sensor detects wind and gusts, retracting the blind to avoid damage.

Additionally, the included remote control allows you to raise or lower the blinds with a simple touch, offering maximum comfort from your sofa.

Easy Installation with No Maintenance

The kit is easy to install on Maanta blinds and requires only a few minutes, with no need for electricians. It does not require maintenance, ensuring efficient and long-lasting operation.

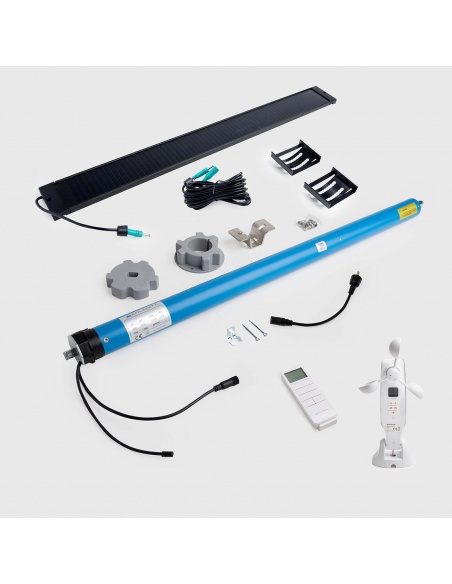

Package Contents:

12V Motor (13N.m/13rpm) with built-in battery, over 200 cycles of autonomy
Solar panel (55 x 6 x 1 cm) for fast charging in 2 days
Remote control with 15 channels to manage up to 15 blinds simultaneously
Anemometer for automatic control of your blind’s raising and lowering.

Expand Features with Optional Accessories

In order to get even more advanced control, the kit is compatible with the WiFi Bridge (optional, see accessory), which allows you to integrate blinds into home automation systems. You can conveniently manage them from your smartphone or via voice commands with Amazon Echo, Google Home, or IFTTT.

Note: The Motorisation Kit is exclusively compatible with Maanta roller shades and replaces the manual system. It cannot be used simultaneously with a crank or manual rod.

DATASHEET

Model	Motorisation kit for roller shades
Total weight	1.72 kg
STRUCTURE
Included materials	Motor, solar panel, remote control, anemometer, screws
Materials not included	Roller shades
Compatibility	Compatible with: Roller shades model Reef Roll; Wi-Fi bridge; Charger for motor The motorisation is not compatible when combined with the manual system (winch + crank).
TECHNICAL SPECIFICATIONS

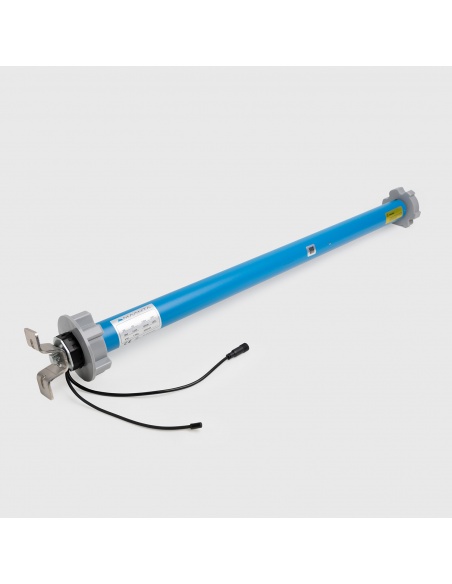

Motor
Type of motor	Tubular motor for roller shades
Voltage	DC 12V
Power	38W 3.23A
Maximum torque	13 N.m
Rotation speed	13 rpm
Motor dimensions	Length: 67 cm Diameter: 35 mm
Weight	1.25 kg
Power supply type	Solar panel
Operating autonomy	200 cycles of ascent and descent with a single charge
Integrated battery capacity	3200 mAh
Battery technology	12V lithium-ion battery
Operating temperature	-10 ℃ ~ +50 ℃
Radio frequency	433.925 MHz

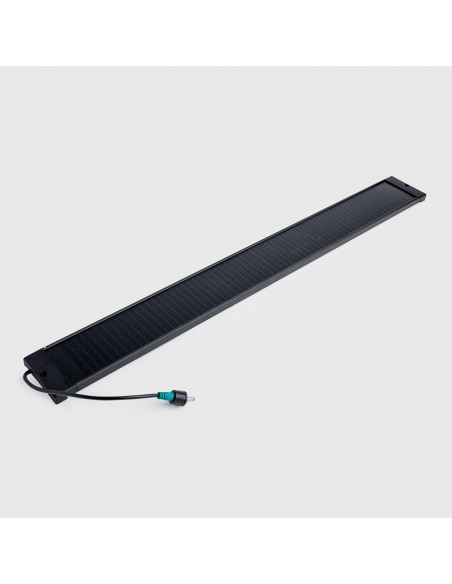

Solar panel
Power	4.9 W
VOC	20 V
Voltage	333 mA
Nominal current	307 mA
Waterproof rating	IP55
Dimensions	Length: 530 mm Width: 57 mm Thickness: 25 mm
Operating temperature	-10 ℃ ~ +50 ℃
Energy efficiency	22.5%
Weight	400 g

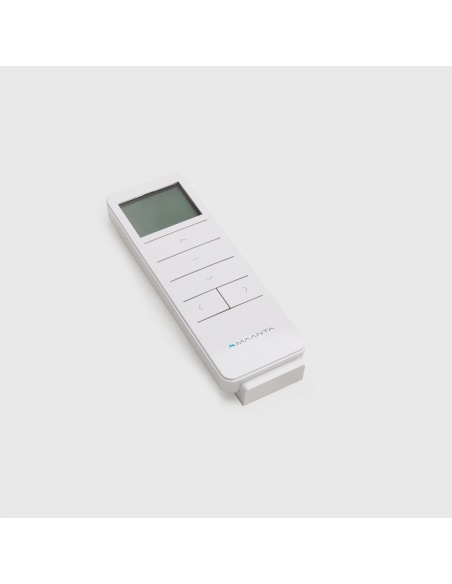

Remote control
Type of remote control	RF (Radio Frequency)
Operating frequency	433 MHz
Maximum range	Up to 200 m in open spaces, 35 m indoors
Power supply	CR2450 battery, 3 V
Battery life	>2 years
Number of channels	Maximum 15 channels
Dimensions	Length: 13.5 cm Width: 4.5 cm Height: 1.2 cm
Operating temperature	-10 ℃ ~ +50 ℃
Weight	70 g

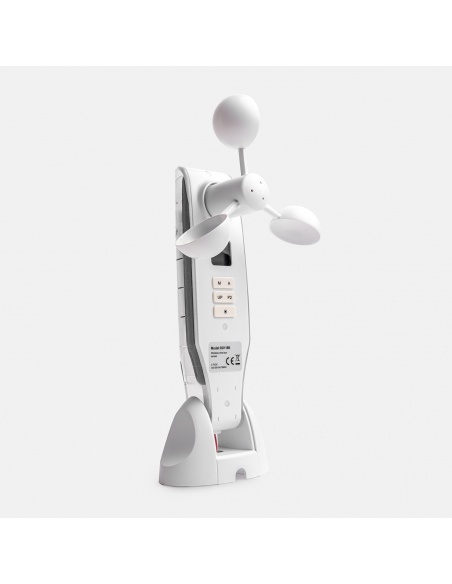

Anemometer
Operating temperature	- 10 °C, + 60 °C
Radio frequency	433.05- 434.79 MHz
Voltage	DC 3.7 V
Light setting	Intensity scale from 0 to 100 klux The light sensor can be deactivated during configuration or reset for customised management
Wind setting	Intensity scale from 0 to 180 km/h
Display type	Display LCD
Charge type	Battery with solar-powered charging or via USB C in the base
Measures	26 x 9 x 9 cm
Overall weight	280 g
PACKAGING AND WARRANTY
Packaging	Motor: 71 x 7 x 7 cm Remote control: 14 x 5.5 x 2.5 cm Solar panel: 61 x 8.5 x 4 cm Anemometer: 28.5 x 13.5 x 11 cm
Warranty	2 years

HOW TO INSTALL THE MOTORISATION KIT

Installing the Motorisation Kit for roller shades is simple and does not require specialised labour or an electrician. Follow the instructions in the installation video or download the PDF guide. If you need further assistance, our technical support team is at your disposal.

Data sheet, package contents, assembly guide and warranty

Download the pdf guide

FAQ

Is the Kit compatible with all roller shades?

The Motorisation Kit is exclusively compatible with Maanta roller shades. It cannot be used simultaneously with manual systems (crank and winch).

What should I do if the solar panel does not work or does not receive enough light?

If necessary, you can use the Maanta 12V charger to recharge the motor. Charging is simple and is carried out via an external jack, with a full charging time of only 2 hours (NOT included in the Kit).

Is a connection to the electrical grid necessary?

No, the Motorisation Kit for awnings with a remote control operates off-grid thanks to the integrated solar panel. No cables, power sockets, or electrical interventions are required.

Can I control the Kit with my smartphone?

Yes, with the WiFi Bridge accessory (see product sheet), you can manage your drop-down awning via smart devices like Google Home, Amazon Alexa, and IFTTT systems for voice or automated control.

Is the Kit weather-resistant?

Yes, it is designed to withstand outdoor exposure. Motor, solar panel and anemometer are built to ensure high performance in any weather condition.

Can multiple roller shades be controlled at the same time?

Yes, the included remote control has 15 channels and allows you to control up to 15 Maanta roller shades simultaneously.

How do I integrate the Kit into a home automation system?

By purchasing the Wi-Fi Bridge, you can connect the Kit to smart home systems such as Alexa, Google Home, or IFTTT.

Does the Kit work in areas with little sunlight?

The solar panel is designed to maximise energy collection even in diffused light conditions. However, in areas with low exposure, the Maanta 12V charger is recommended for additional support.

Does the Kit require maintenance?

The Kit requires minimal maintenance. We recommend regularly cleaning the solar panel to ensure efficiency and periodically checking the remote control battery.
